Description

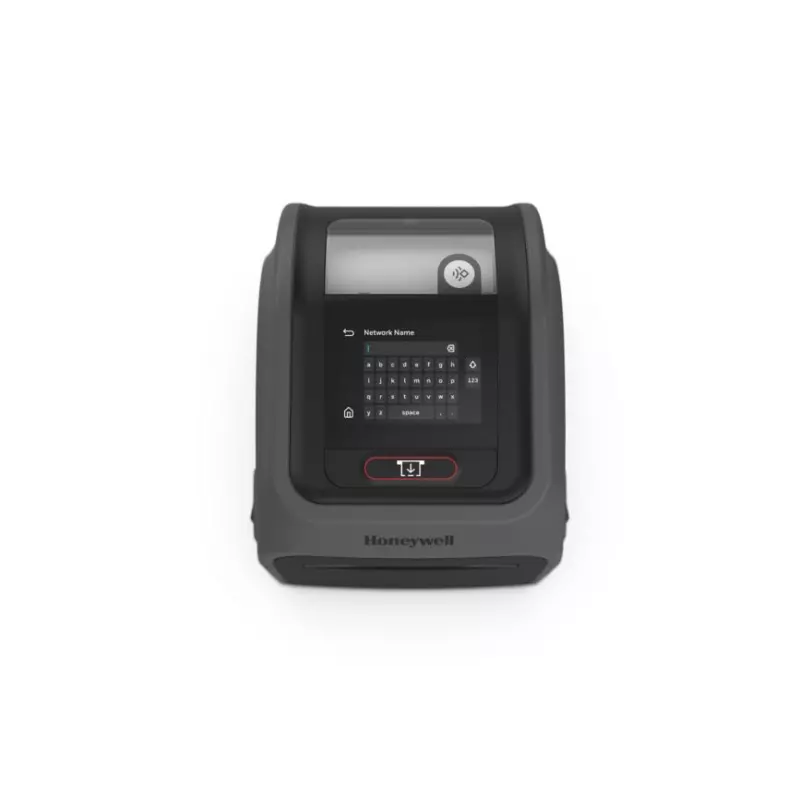

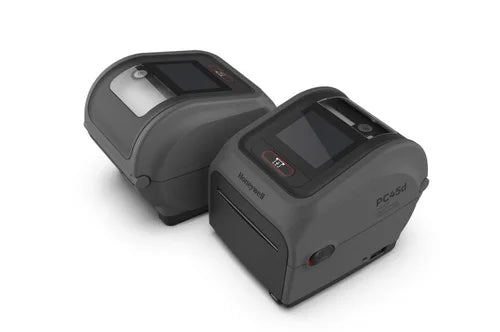

PC45D:
LxWxH:
168 mm L x 181.3 mm W x 215.6 H
(6.6 in L x 7.1 in W x 8.5 in H)
Weight: 1.8 kg (4 lbs)
ENVIRONMENTAL
Operating Temperature:
0°C to 45°C (32°F to 113°F)
Storage Temperature:
-20°C to 60°C (-4°F to 140°F)
Humidity:
10% to 90%, non-condensing
PRINT SPECIFICATIONS
PC45d:
Max. Width at 203 dpi: 108 mm (4.25 in)
Max Width at 300 dpi: 106 mm (4.12 in)
PRINT SPEED
At 203 dpi: 2ips up to 8ips
At 300 dpi: 2ips up to 6ips
PRINT RESOLUTION
At 203 dpi: 8 dots/mm
At 300 dpi: 12 dots/mm
WIRELESS CONNECTIVITY
WLAN:
IEEE 802.11 a/b/g/n/ac; Wi-Fi certified,
Security: OPEN, WEP,WPA/WPA2/WPA3
(Personal and Enterprise)
FAST roaming (802.11r)
Supported EAP: TTLS, TLS, PEAP, LEAP
Bluetooth: Bluetooth 5.2
(Field or Factory installable)
Bluetooth: Bluetooth 5.1
MEDIA AND RIBBON SPECIFICATIONS
Maximum Media Width:
118mm (4.65 in)
Maximum Media Roll Capacity:
127 mm (5 in) O.D
Media Core I.D:
12.7 mm (0.5 in), 25.4 mm (1 in),
38.1 mm (1.5 in)
Minimum Media Length:
6.35 mm (0.25 in)
Media Thickness:
0.06 mm (2.5 mil) to 0.20 mm (8 mil)
For optimum print quality and printer
Media Types:
Wristband, tags, receipt paper, linered and
linerless labels, labels with black mark or
gap
Media Sensing:
Gap, notch, black mark, continuous
Other sensing:
Media low
INTERFACES
Standard:
Ethernet 10/100 Mbps
USB 2.0 Host High Speed
USB 2.0 Device High Speed
Optional:
RS-232, up to 115.2 KB/s
Network Protocols:
TCP/IP suite (TCP, UDP, M, IGMP), LPR/
LPD, Telnet/SSH, FTP/SFTP, BOOTP,
DHCP, HTTP/HTTPS, SNMPv1/2c/3,
SNMP-MIBII supported – over UDP/IP
(private enterprise MIB included), SMTP
Supports IPv4 and IPv6
RFID
1 8000-6C / EPC Class 1 Generation 2
Radio configured to comply with local UHF
RFID regulations, including FCC and ETSI.
Contact local representative for availability
in particular region.
NETWORK SECURE CHANNELS
Secure Net1 printing channel
Secure printer configuration channel
OPTIONS AND ACCESSORIES
• Self-strip module with LTS
• Media low sensor
• RFID UHF
• Cutter module (linered and linerless)
• External media holder
• Cellular modem
USER INTERFACE
88.9 mm (3.5 in) 320 x 240 Color LCD,
1 Print/Feed button and ready-to-work
LED
MEMORY
Standard:
256 Mbyte RAM
512 Mbytes Flash
POWER SUPPLY
Input:
100–240V AC/50–60 Hz, 1.5 A
Output:
24V DC, 3.15 A
SOFTWARE
Printer Command Languages:
Fingerprint (FP), Direct Protocol (DP),
Intermec Printer Language (IPL), ZSim2
(ZPL-II), DPL, XML-enabled for SAP AII and
Oracle WMS, PDF, C#
Applications/Drivers:
InterDriver Windows printer driver, CUPS driver for Linux, Honeywell Device Types for SAP, Honeywell label design and print package
Smart Printing Languages:
C# for Printers: Honeywell Smart Printing Developer Resource Kit; write apps with .NET compatible development environments
Configuration and Device Management Support (optional):
PrintSet 5 for printer configuration; sophisticated web interface for configuration, upgrades and 1:1 management
Regulatory approvals
RoHS Compliant, CE (EN55032 Class B),
FCC Class B, Energy Star 3.2 Qualified
WARRANTY:
Two-year warranty; additional service packages available through Honeywell Repair Services
For a complete listing of all compliance approvals and certifications, please visit
www.honeywell.com/PSScompliance
For a complete listing of all supported barcode symbologies, please visit www.honeywell.com/PSS-symbologies Android and Bluetooth are trademarks or
registered trademarks of their respective owners. Honeywell Printer Edge is a trademark or registered trademark of Honeywell International Inc.
